Radioisotope Dose Calibrator
Dose Calibrator

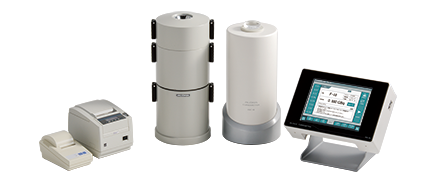

IGC-8
It uses a highly visible 10.4-inch color LCD touch panel display.
This is a radioactivity measurement device that uses a well-shaped ionization chamber.
In addition to being able to select a total of 25 nuclides, including the 8 nuclides commonly used in nuclear medicine, any nuclide can be registered and measured (up to 99 nuclides).
Features
- In addition to 89Sr and 90Y, which are used as beta radiation treatment drugs , 223Ra, an alpha radiation treatment drug, can also be measured.
- Nuclides that are not registered in the preset nuclides can also be measured by entering the conversion constant and half-life.
- The eight major nuclides are sorted in order of frequency of use, and a learning function is included to make it even easier to use.
- It supports positron nuclides such as 11C and 18F as standard, and the measurement unit can be switched between Bq and Ci.
- A variety of calculation functions are provided as standard, including background subtraction, half-life correction, concentration and dosage volume calculation.
- Vials and syringes can be measured directly using the dedicated sample holder.
- A calibration certificate is attached. A calibration certificate will also be issued upon inspection and calibration.
- By connecting a label printer (optional) or dot matrix printer (optional), it is possible to print out measurement results. It also supports external communication output.
"Patient number", "Nuclide", "Measurement date and time", "Volume of sampleliquid", "Amount of administered radioactivity", "Amount of radioactivity", "Concentration at time of administration", "Volume ofadministered liquid", "Time of administration"
specifi cation
| Radiation detected | Gamma (X)-ray of 30 keV or more positron nuclides |
|---|---|
| Detection method | Argon gas filled well-type ionization chamber |
| Measurementnuclides | 11C、13N、15O、18F、51Cr、57Co、59Fe、60Co、67Ga、75Se、87mKr、85Sr、89Sr＊2、90Y＊2、99mTc、111In＊1、123I＊1、125I＊1、131I、133Xe、137Cs、197Hg、198Au、201Tl、226Ra User can select from the list of the 8 main nuclides or all 99 nuclides *3 from the list. ( The list of the 8 main nuclides is automatically arranged in order of frequency of use by the learning function.) ＊1 A conversion constant must be set because it is a low - energy X-ray emitting nuclides. ＊2 A conversion constant must be set because it is a pure beta emitting nuclides. ＊3 For nuclides other than the preset nuclides (223Ra), the nuclide name, conversion constant and half-life must be entered. |
| Unit of measure | Bq or Ci switchable |
| Measurement range | 0.01MBq to approx. 100GBq （0.1μCi to approx. 3Ci. for99mTc） 0.01MBq to approx. 22GBq （0.1μCi to approx. 0.6Ci. for18F） ＊ The upper limit of measurement varies slightly depending on the nuclide. |
| Background subtraction | If the background is measured in advance, the background value is automatically subtracted thereafterto display the NET value. |
| Measurement accuracy and repeatability | Measurement accuracy: 5% approx. 19MBq or more（at 99mTc） |
| Reproducibility 1% approx. 19MBq or more（at 99mTc） | |
| Text input | Half-width alphanumeric characters (virtual keyboard) |
| Power supply | AC100V、50/60Hz、approx. 40VA |
| External dimensions and weight | Detection unit: approx. (W) 21 x (D) 24 x (H) 40 cm approx. 21 kg |
| Measuring part approximately (W) 32.5 x (D) 22.5 x (H) 29cm approx. 4 kg |
